IP Phone Configuration


IP PHONE

NOWADAYS, BY ACCESSING IP PHONES EITHER THERE IS A FEATURE INSIDE THE IPHONES TO CONFIGURE THE IP ADDRESS AND THAT IS A SEPARATE SOFTWARE.

 BUT IT IS OLD TECHNOLOGY DIAL NUMBERS ARE CONFIGURED IN THE ROUTER.

CONFIGURATION

 FIRST STEP

1. CONFIGURATION IP ADDRESS TO R1 AND PC1.

2. CONFIGURATION DHCP IN R1.

SECOND STEP

1. CONFIGURATION IP PHONE IN R1.

2.  ENABLE VOICE VLAN IN SW1.

_____________________

FIRST STEP

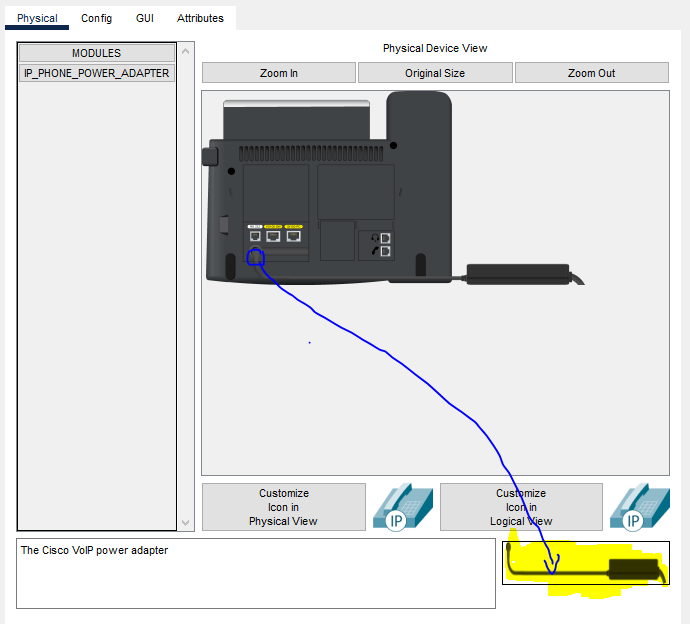

FIRST YOU HAVE TO OPEN THE  ALL IPHONE AND THEN GO TO THE IPHONE AND ATTACH THE POWER ADAPTER.


AFTER THAT YOU GO TO ROUTER AND ENTER COMMANDS FOR ASSIGN IP ADDRESS.

Router(config)# inter fa0/0

Router(config-if)# ip address 192.168.100.1 255.255.255.0

Router(config-if)# no shutdown


CONFIGURATION DHCP ON ROUTER.


Router(config-if)# ip dhcp pool manan

Router(dhcp-config)# network 192.168.100.0 255.255.255.0

Router(dhcp-config)# default-router 192.168.100.1


_________________


SECOND STEP


AFTER THAT YOU GO TO ROUTER  CONFGURATION MODE AND ENTER COMMANDS FOR IP PHONES CONFIGURATION.


Router(dhcp-config)# option  150 ip 192.168.100.1

Router(dhcp-config)# exit

Router(config)# telephony-service

Router(config-telephony)# max-ephones 4

Router(config-telephony)# max-dn 4


YOU HAVE TO TELL AS MAX- EPHONES AS YOU WANT TO CONFIGURE AND EPHONES MEANS YOUR IP PHONES AND MAX-DN MEANS YOUR DIAL NUMBERS FO  IP PHONES.

Router(config-telephony)#ip source-address 192.168.100.1 port 2003

IP SOURCE-ADDRESS MEANS ROUTER IP ADDRESS THAT IS USED A DEAFULT GATEWAY.

Router(config-telephony)# auto assign 1 to 4

AUTO ASSIGN  THIS  MEANS HOW MANY IPHONES YOU ARE CONFIGURING IN NETWORK.

Router(config-ephone-dn)# ephone-dn 1

Router(config-ephone-dn)# number 101

Router(config-ephone-dn)# ephone-dn 2

Router(config-ephone-dn)# ephone-dn 2

Router(config-ephone-dn)# ephone-dn 3

Router(config-ephone-dn)# number 10

Router(config-ephone-dn)#ephone-dn 4

Router(config-ephone-dn)# number 104


GO TO SWITCH CONFIGURATION MODE AND ENTER COMMANDS FO ENABLE VOICE VLAN.

Switch(config)# INTER R FA0/2-6
Switch(config-if-range)# SWitchport Voice Vlan 1

_________________

GO TO ROUTER ENALE MODE AND ENTER COMMAND.


Router# sh ephone



  SO CHECK COMMUNICATIN BTWEEN IP PHON1 AND IP PHONE 4.



 GO TO IP PHONES  AND CLICK GUI AND GO TO IP PHONE 1 GUI ENTER THE NUMBER OF IP PHONE 4.



CLICK THE HEADSET OF IP PHONE 4 AND SEE CONNECTED TO SCREE OF IP PHONES.




COMPLETED THE IP PHONES CONFIGURATION.
